Technical data

Max. element temperature

70°C (158°F)

Min. element temperature

-50°C (-58°F)

Dielectric strength at 20°C AS per ASTM KV/mm

175

Thermal conductivity at 100 °C W/(m•K)

0.16

Moisture absorption as per ASTM D-570-63. (24h immersion at 23°C)

0.8 %

Constant of dielectricity at 25°C, 50Hz

3.3 (PET)

Power density at -40°C

0.1 W/cm²

Resistance tolerance

±20%

Rated voltage

800 V

Other

Possible substrates: PET, glass, paper etc.

Applications

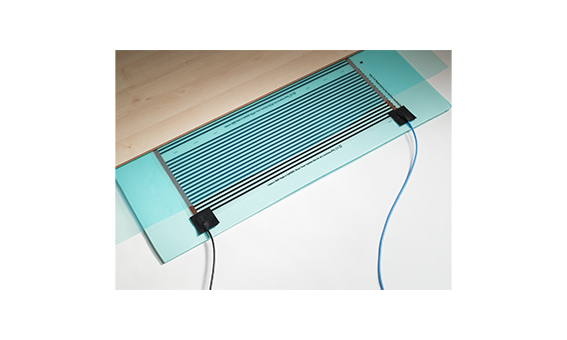

  • Floor Heating
  • IR targets

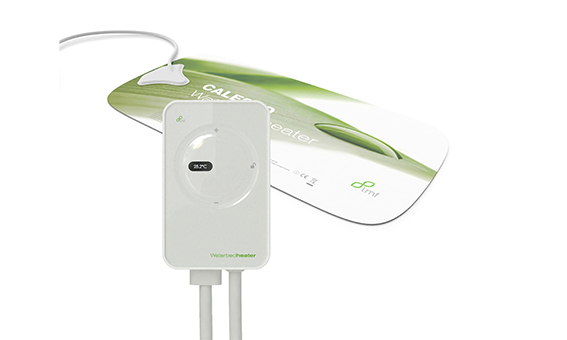

  • Waterbed heaters
  • High voltage, small area applications
  • Waterbed heaters

  • Floor heating
