Technical data

Max. element temperature

230 °C (446 °F)

Min. element temperature

-50 °C (-58 °F)

Dielectric strength at 20°C AS per ASTM KV/mm

21- 23

Thermal conductivity at 100 °C W/(m•K)

0.24

Moisture absorption as per ASTM D-570-63. (24h immersion at 23°C)

0.1 %

Waterproof as per IEC 335-1 sect. 15-16

yes

Constant of dielectricity at 25°C, 50Hz

2.9-3.6

Bending radius, min.

3 mm

Max. element width

600 mm

Power density

1,3 W/cm²

Resistance tolerance

As standard, ±10% of nominal.Tolerance down to ±2% available

Rated voltage

Up to 1000 V AC/DC single or 3 phase

Approvals/Standards

ETL (UL, V0, HB)

Applications

  • Food service equipment
  • Freeze protection and condensation prevention
    for instrumentation and equipment
  • Medical respirators
  • Ultrasonic cleaners
  • Railway couplers
  • Industrial heaters

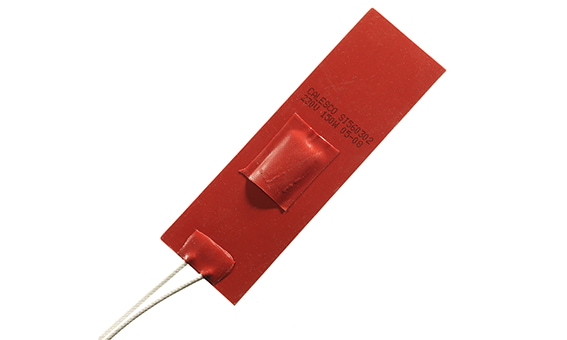

  • Heater for ultrasonic wash

  • Heater for industrial application

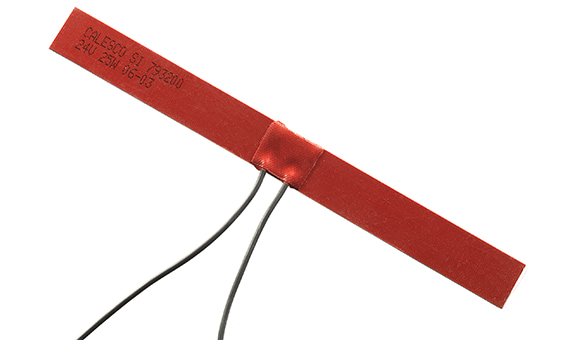

  • Heater for railway couplers
