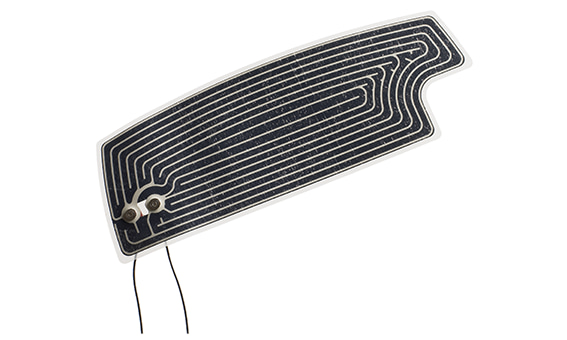

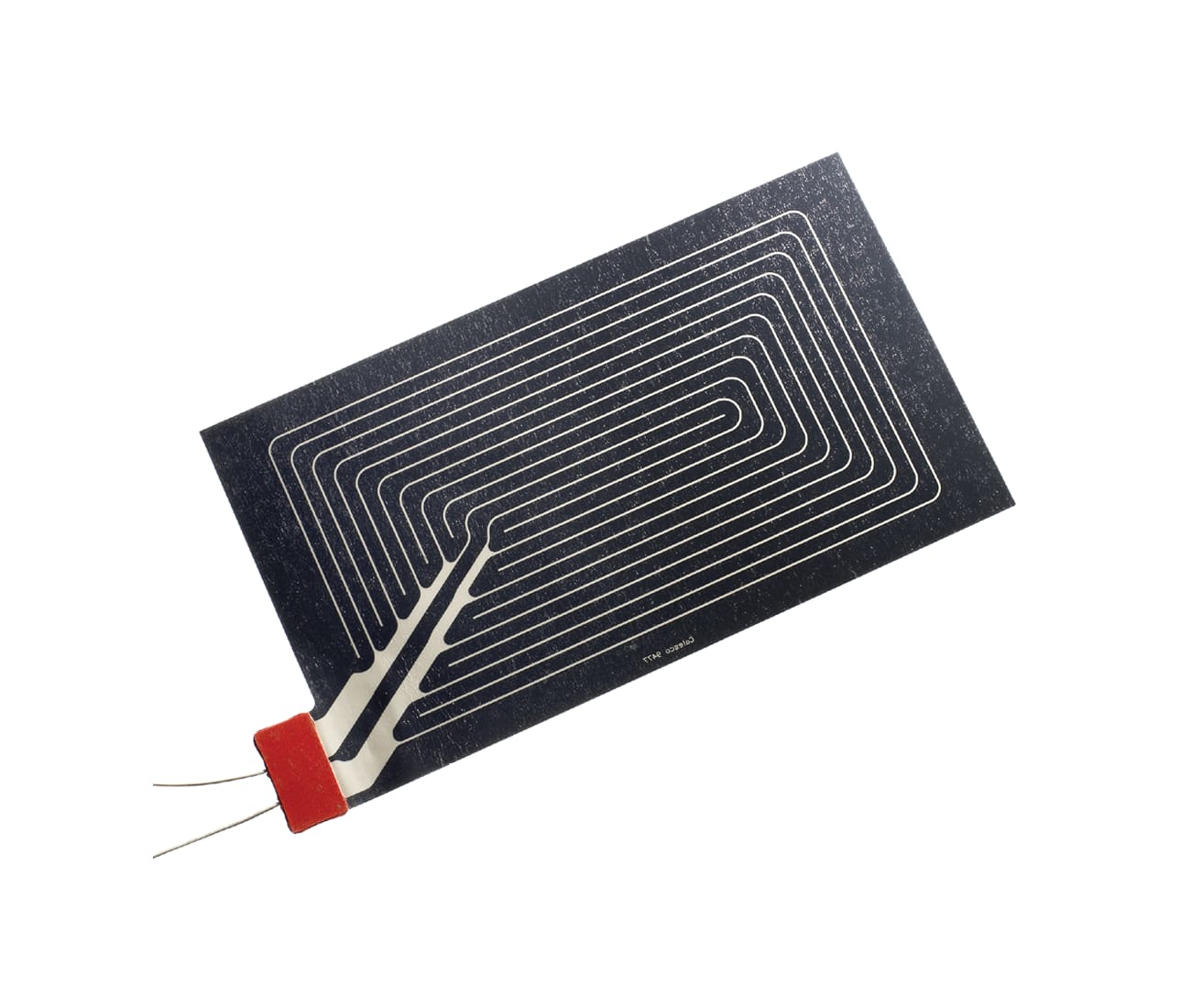

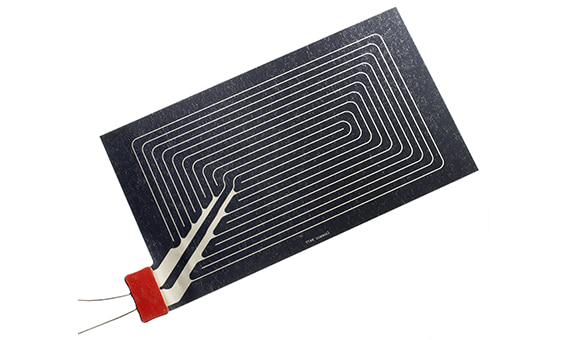

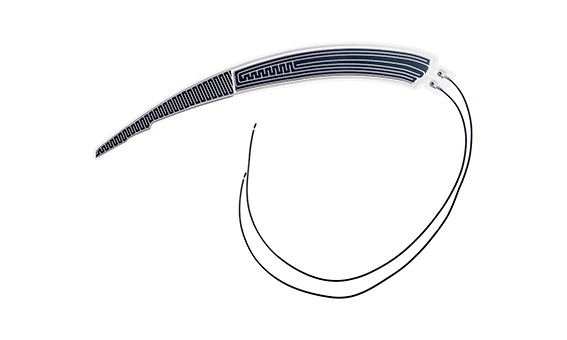

Printed polymer heaters are based on low-resistance printed silver as electrode. Heat is generated by a number of polymer resistors with PTC characteristics (positive temperature coefficient) connected in parallel. In most cases the polymer resistor covers the heater completely and hence gives a very uniform temperature distribution. The PTC effect makes the heater self-limiting and hot and cold spots are therefore avoided as the power is generated were you need it. The polymer heater is also very corrosion-resistant compared to metal heaters.
Benefits of PTC heaters:
Max. element temperature | 70 °C (158°F) |
|---|---|
Min. element temperature | -50°C (-58°F) |
Dielectric strength at 20°C AS per ASTM KV/mm | 175 |
Thermal conductivity at 100 °C W/(m•K) | 0.16 |
Moisture absorption as per ASTM D-570-63. (24h immersion at 23°C) | 0.8 % |
Constant of dielectricity at 25°C, 50Hz | 3.3 (PET) |
Power density at -40°C | 0.3 W/cm² |
Resistance tolerance | ±20% |
Rated voltage | 800 V |
Other | Possible substrates: PET |
