Technical data

Max. element temperature

200 °C (392 °F)

Min. element temperature

-60 °C (-76 °F)

Dielectric strength at 20°C AS per ASTM KV/mm

205

Thermal conductivity at 100 °C W/(m•K)

0.17

Moisture absorption as per ASTM D-570-63. (24h immersion at 23°C)

2.9 %

Waterproof as per IEC 335-1 sect. 15-16

No

Constant of dielectricity at 25°C, 50Hz

3.5

Bending radius, min.

1 mm

Max. element width

600 mm

Power density

1,3 W/cm²

Resistance tolerance

As standard, ±10% of nominal.Tolerance down to ±2% available

Rated voltage

Up to 1000 V AC/DC single or 3 phase

Applications

  • Military/areospace, where low outgassing
    properties are required
  •  Medical diagnostic instruments, where autoclave
    cleaning or sterilization is needed
  • Camera/lens
  • LCD displays
  • Laboratory research
  • Alco locks
  • Anesthesia

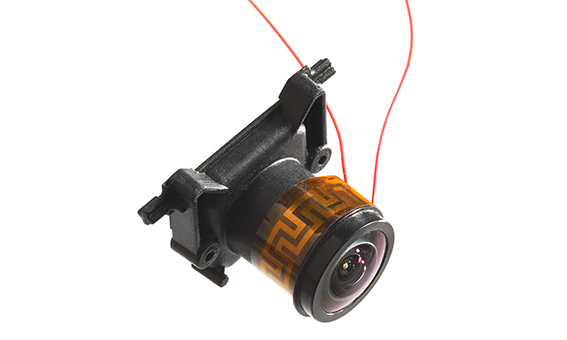

  • Heater for camera/lens

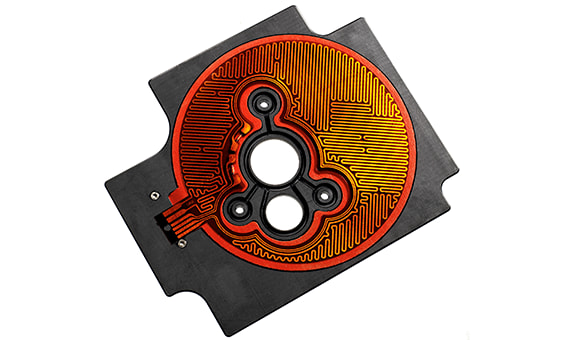

  • Heater for anesthesia

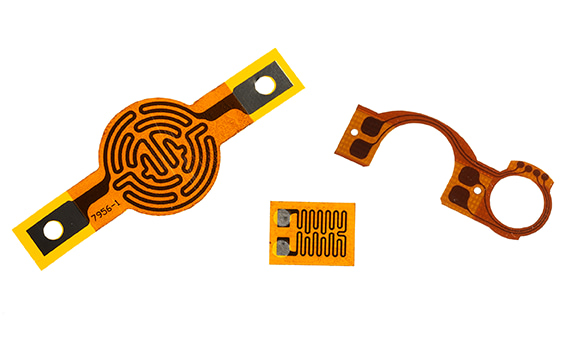

  • Heaters for alco locks

Download

  • Polyimide heaters.pdf pdf
    395.2kB, 2022-06-09 13:51:36

Contact US



  • What are the kapton heaters?

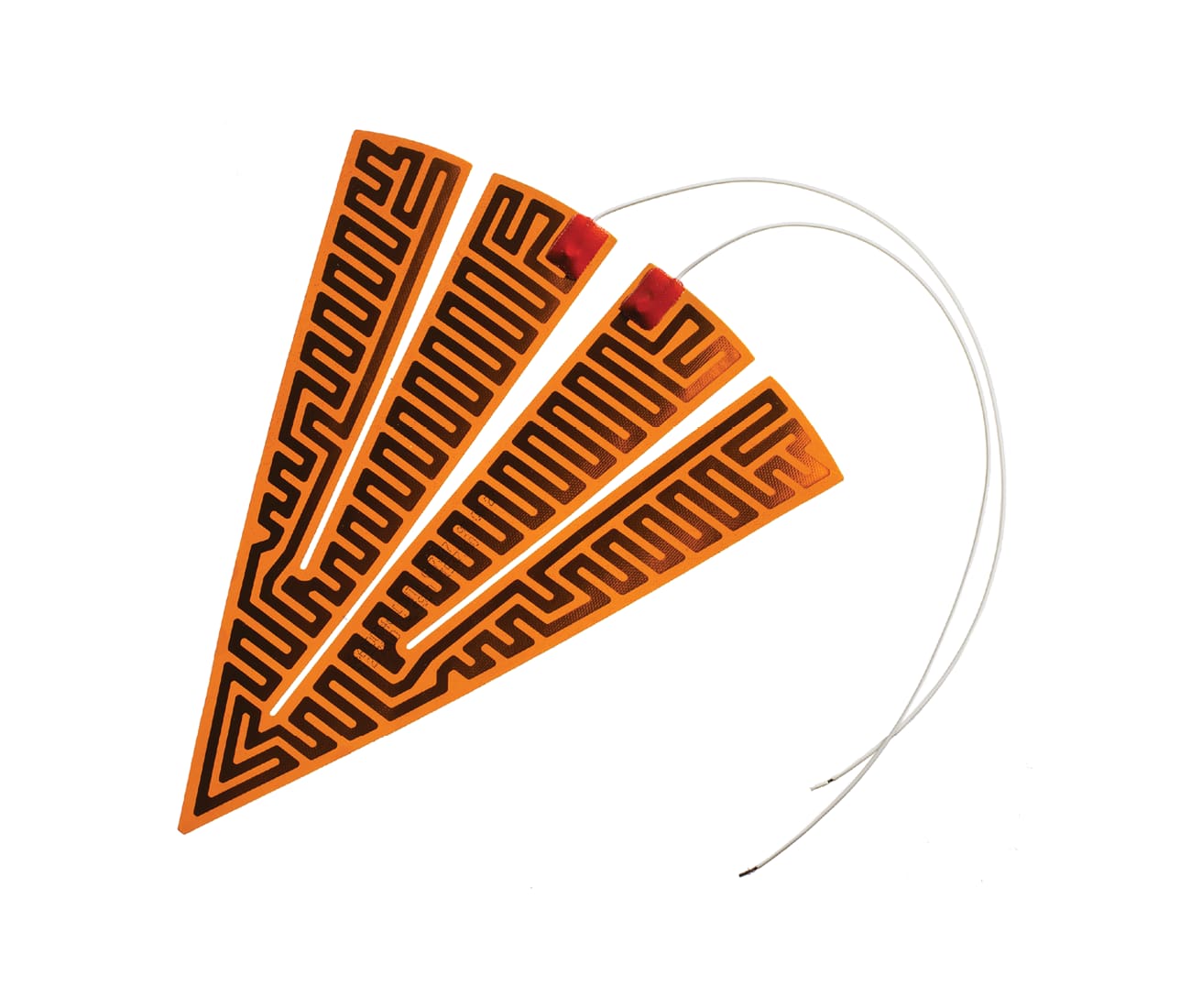

    Kapton heaters, also known as polyimide heaters, are flexible heating elements that utilize Kapton® (trademark of DuPont) or simply a polyimide film as their base material. Kapton polyimide heaters distributing heat evenly across surface.

    With 50+ years of experience in etched foil heaters and global production (Sweden, Poland, Vietnam, China), we at Backer Calesco can offer widest range of flexible heaters that are adapted to various customer needs.
